There is an old layout for this one in the library that looks like trash so I did a new one from scratch. The Depth control was pretty much useless (factory/design error?) so I rewired it for this layout. Also there was some complaints about the feel and taper for some of the controls. See the suggested changes below the layout.
Per request. Another Meathead variant with some minor tweaks compared to the original. But it is added to the library for science (and another excuse to build another one knob fuzz😏).
Per request. Pretty close to a 3-knob Park Sound fuzz with some minor value changes. The additional "Gain" control like a second volume control?
Schematic is avaiable HERE.
Something like this have probably been done before... Yes, Fuzzdog added a 3-band Marshall style tonestack to a Rat a while ago. Oh, and there is Idiotbox Blowerbox, a Rat tuned for bass with less gain with a James tonestack....
This one is quite similar to the latter but has more gain on tap and are tuned for guitar. The James tonestack have Matamp/Orange values but can be tweaked witch Duncan Tonestack calculator. Oh, and there is a diode switch for assymetric SI/MOSFET clipping and symmetrical LED clipping.
Layout based on the old version from the 70s. Note that this one is really picky about op amp selection so be prepared for some socketing...
I admit that I did a layout for this soleily based on the name...😏
This is one those really cheap 80s distortions that sounds harsh, compressed and trebly. But it might be worth modding towards something decent? The clippers can be subbed for LEDs for some headroom, both 47pF caps can be inreased to shave off some high end. Also the Tone control and the 10nF cap next to it can be adjusted.Oh, and don't forget to use an expensive Burr Brown IC for the op amp...
Schematic is avaiable HERE.

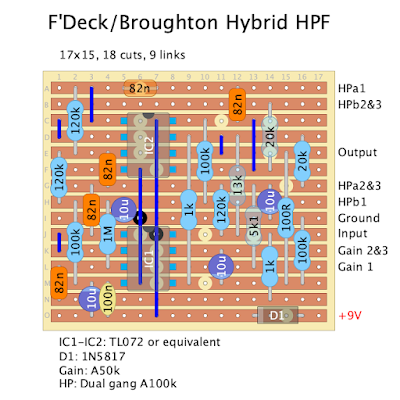

Another guest appearance by Sebastian who generously shares his interesting designs!
Here is a snippet of his description for it:
...hybrid of the F'Deck (series 3) and the Broughton high-pass filters. I wanted the steeper slope of the F'Deck (24db/octave below 35Hz) with the gain boost of the Broughton—so, here it is!

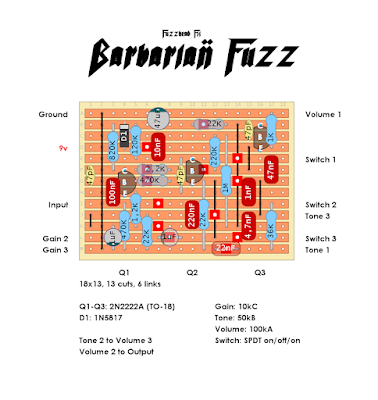

I dug out my breadboard to clear some thoughts and played around a bit. Well, I ended up with one of my top 3 fuzz circuits, Roland Double Beat. It is perfect as is, just added some minor filtering here and there. But the stock Double Beat rotary switch tonestack sucked IMO so I just tacked on the tonestack from Apocalypse Audio H Fuzz which very versitale and simple. Now this is a angry doom machine.
Got no name for it but listened to some Electric Wizard tune Barbarian the other day so...let's call it Barabarian Fuzz, ok?
ATM, the MOJO layout is verified but not the small one.
Chuck D. Bones take on one of Björn Juhl's designs, a hot rodded Honey Bee. Lots of tweaks all over the place so it probably differ quite a bit compared to the original circuit. I subbed the hard to source clipping diodes for NPN transistors to match the voltage drop and knee. Regular 1N4148s will work but they have a slightly lower voltage drop.
Schematic is avaiable HERE.
Another very interesing by Chuck D. Bones over at the PedalPCB forum. The inspiration comes from some of Catalinbreads overdrive and fuzz designs but adds a lot of refinement amd tweakability..
Schematic is avaiable HERE.
Nils from Moonn Electronics took a stab on the Big Muff and twisted the knife... Looks pretty cool. MOSFET and regular silicon transistors, blue LED clippers and a wild tonestack. Schematic and BOM can be found HERE.
Foxx sold a couple of wah variants in the early 70s, often combined with a Foxx Tone Machine circuit. There was an inductorless version and a Cry Baby variant with a 4 posistion "Wah Tone" selector switch. This layout is for the inductorless version. HERE is the schematic.
Ok, let's continue on the Black Arts theme. Destroyer is essentially a Ritual that slams an Oath. The layout is a bit wider than usual since it is intended for a BB enclosure with two footswitches.
