Barber Gain Changer

 Schematic is avaiable HERE.

Barber Compact Direct Drive

 Schematic is avaiable HERE.

Barber Linden EQ

 Schematic is avaiable HERE,

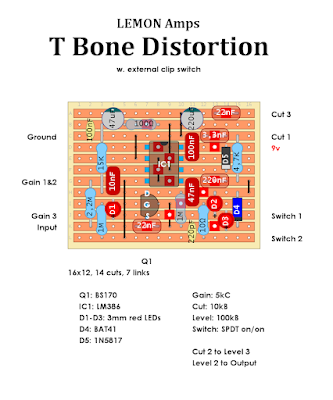

Lemon Amps T Bone Distortion

 Schematic is avaiable HERE.

Lemon Amps Hammer Fuzz

 Schematic is avaiable HERE.

Lemon Amps Night Screamer

 Schematic is avaiable HERE.



'

Lemon Amps Dirty Booster

 Schematic is avaiable HERE.

BJFe Heavy Swede

 Now this is an interesting take on the Boss HM-2 circuit...

The schematic speaks for itself.



EarthQuaker Devices Spires Green Channel

 A Rosac Nu Fuzz done EQD style... Heavily modified values compared to the stock Rosac schematic that is floating around online. It suggest that it should have more volume on tap and a tone control with much wider range than its ancestor.

Schematic is avaiable HERE.

EarthQuaker Devices Spires Red Channel

 For those who don't want the whole Spires circuit with all the offboard wiring comes two separate öayouts for each channel. The red channel is a modified silicon fuzz face with some additional filtering and a fuzz control at the input. MPS3704 transistors seems to be not that common but a quick equivalent search reveals that they are NPN silicon transistors with a minum Hfe at 300. So 2N5088s or the BC54x family might begood subs if you don't have the stock transistors on hand.

Schematic is avaiable HERE.

Jackson Audio 1484 Twin Twelve

 Another guest appearance by Sebastian. Thanks a lot!

Schematic is avaiable HERE.

Pearl CO-04 Compressor

 Schematic is avaiable HERE.

Fuzzhugger Fx Phantom Octave

 A glitchy fuzz with the ability to produce some bad tracking octave down. The key is to play with your guitar volume and tone controls.

Pearl FG-01 Flanger

 Schematic is avaiable HERE.

Blakemore Effects R.O.U.S.
