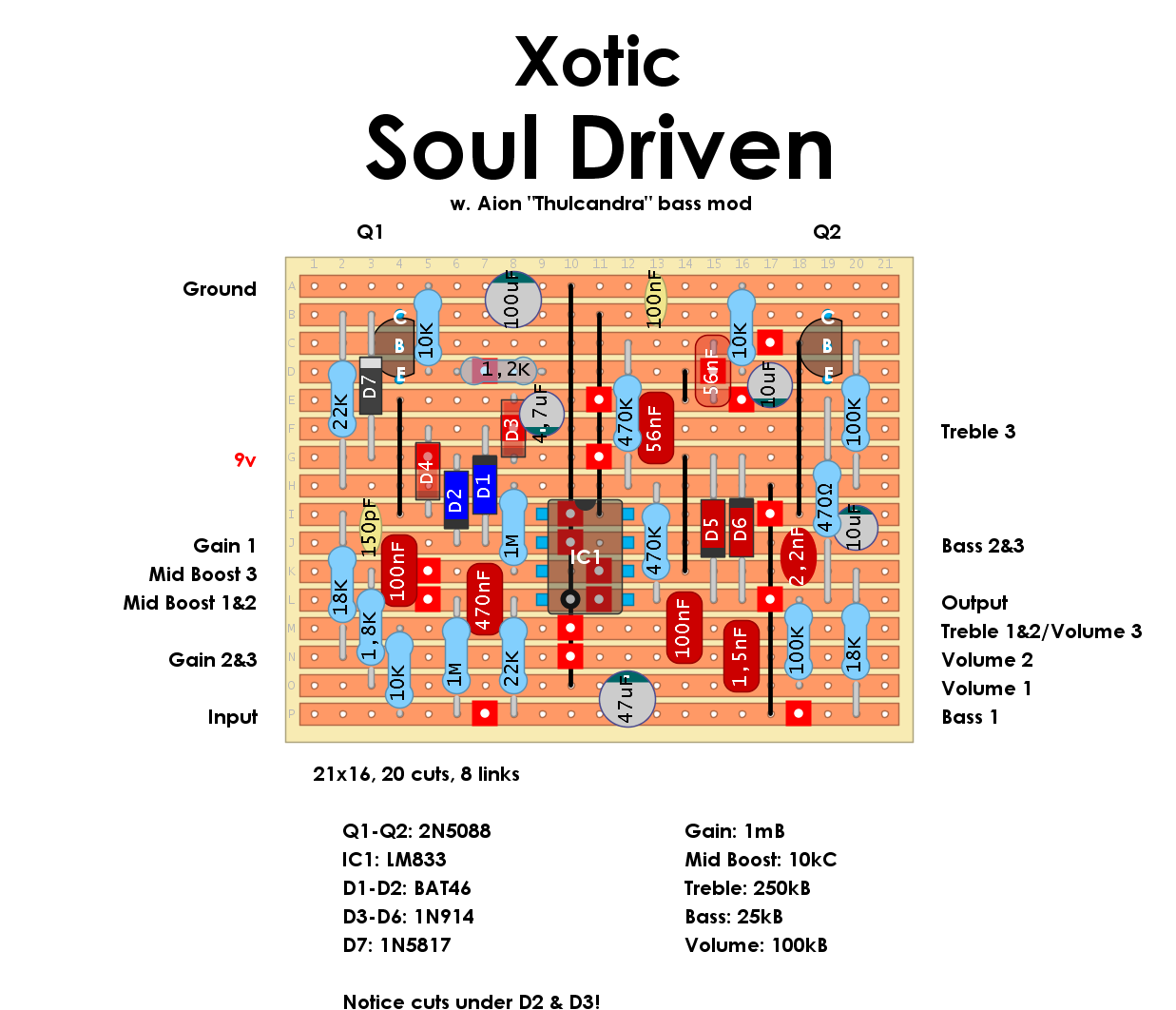

With "Bass mod" by Aion Electronics. Original has internal DIP switches to select different bass frequencies but is here moved to the outside and converted to a pot.
Hi fuzzhead. Gain2-3 and gain 1 must be reversed. Mid boost3 and mid boost1-2 must be reversed.Done this,100n-C3 connected to mid boost1-2 does not go to ground.
Argh! Sorry. I forgot it. That layout of mine is actually VERIFIED! The link, again: http://guitar-fx-layouts.42897.x6.nabble.com/file/n48976/Xotic_Sould_Driven_2.png
Hi fuzzhead. I did and there are no other errors in the layout, so it VERIFIED.I like it more with LM358 instead of LM833 and 1N4148 diodes instead of BAT46-1N914,present in the scheme published by Elijah Baley and for this thank you.Thank you Elijah,thank you Fuzzhead.
Good! The diodes was the ones on the datasheet by Aion, and probably in the original Xotic pedal. https://aionelectronics.com/blog/tracing-journal-xotic-soul-driven-boost-overdrive/ But it's so easy experiment other combinations.
Great!! Thanks!!
ReplyDeleteMiquel, let us to know if you're building this layout.
DeleteMeanwhile, here my verified layout (my first serious one): http://guitar-fx-layouts.42897.x6.nabble.com/file/n48976/Xotic_Sould_Driven_2.png
I didn't verified it, but another guy do it.
Hi fuzzhead. Gain2-3 and gain 1 must be reversed. Mid boost3 and mid boost1-2 must be reversed.Done this,100n-C3 connected to mid boost1-2 does not go to ground.
ReplyDeleteYes, there are those two mistakes. I compare this one with my layout (linked above). My layout is still unverified, too.
DeleteWell spotted, layout updated.
DeleteArgh! Sorry. I forgot it. That layout of mine is actually VERIFIED!
DeleteThe link, again:
http://guitar-fx-layouts.42897.x6.nabble.com/file/n48976/Xotic_Sould_Driven_2.png
Hi fuzzhead. I did and there are no other errors in the layout, so it VERIFIED.I like it more with LM358 instead of LM833 and 1N4148 diodes instead of BAT46-1N914,present in the scheme published by Elijah Baley and for this thank you.Thank you Elijah,thank you Fuzzhead.
ReplyDeleteWoohoo, thanks you! I'll tag it!
DeleteGood!
DeleteThe diodes was the ones on the datasheet by Aion, and probably in the original Xotic pedal.
https://aionelectronics.com/blog/tracing-journal-xotic-soul-driven-boost-overdrive/
But it's so easy experiment other combinations.
Well spotted! Updated the layout with the shottkeys.
DeleteI'm a beginner.
DeleteSomeone can explain me"Notice cuts under D2 & D3!"?
Looks like a typo. The cuts under D3 and D4 are a little hard to see, that's all.
ReplyDeleteThanks a lot!
ReplyDeleteI can find cuts under D3 and D4.
But I can't find under D2.
There are no cuts under D2?
