Kay F-1 Fuzz Tone w. mods
Modified Kay Fuzz Tone adopted for regular stompbox use. Mid and Treble controls is added along with a gain/bass boost switch. Also added a recovery stage since originals barely reach unity level.
Friday, 23 August 2019

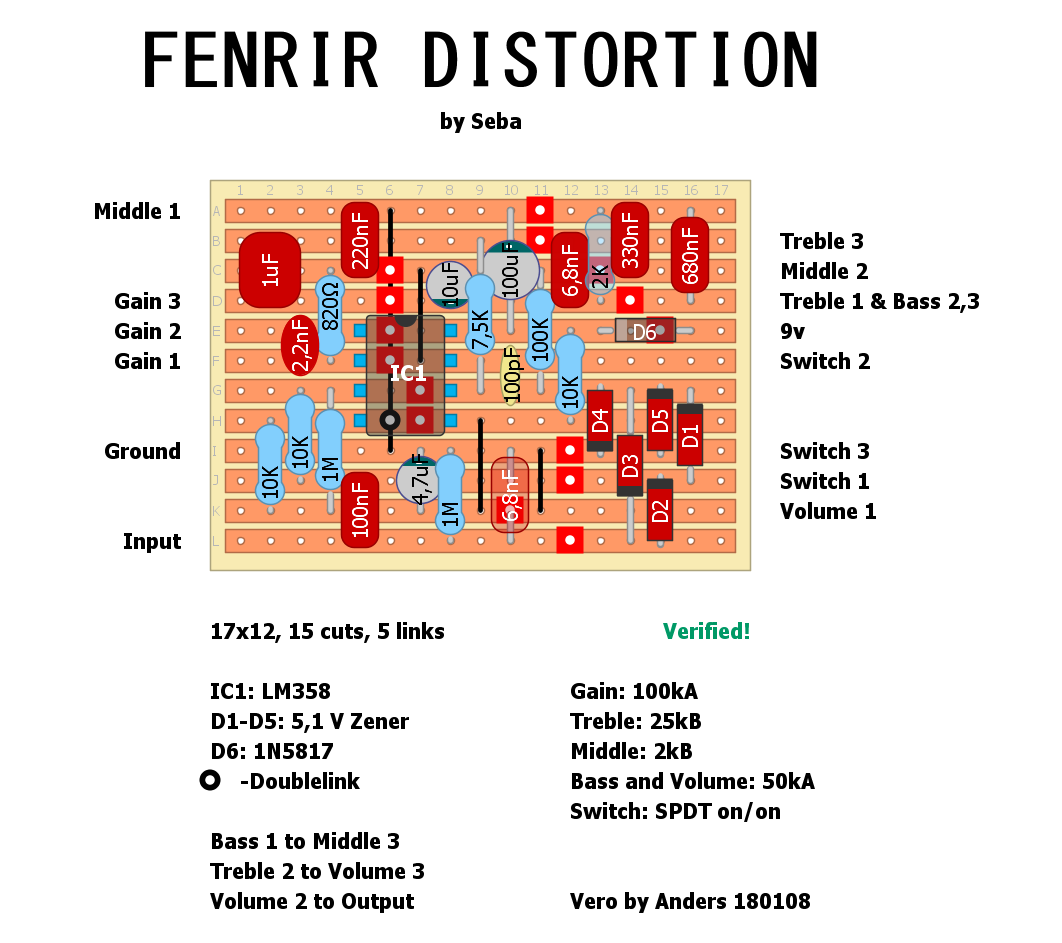

Fenrir Distortion
A very good sounding Guv'nor derivate using zener diodes in the feedback loop for clippers.
Thursday, 22 August 2019
Wednesday, 21 August 2019
Tuesday, 20 August 2019
Monday, 19 August 2019
God City Instruments Stockwell Eq
Now verified by Alex, thanks!
Updated 19.08.20 - Moved 9v from pin 8 to pin 7 at TL071
Updated 19.08.20 - Moved 9v from pin 8 to pin 7 at TL071
Sunday, 18 August 2019
Saturday, 17 August 2019
Friday, 16 August 2019
Thursday, 15 August 2019
Tuesday, 13 August 2019
Monday, 12 August 2019
Schaller Fuzz Sustain
An old fuzztone from West Germany which was housed in a wah shell. The treadle controlled the amount of fuzz and clean signal through a dual gang pot. There was an internal 22k trimmer which controlled the amount of gain.
Built it stock which works fine but it needed some improvements like higher output level and the internal trimpot was changed to an external gain control. Increased the value to 100k for more gain. Stock units had BC413C and BC239C transistors which is fairly high gain general purpose silicon transistors so BC549C's and 2N5088's should work equally good.
Built it stock which works fine but it needed some improvements like higher output level and the internal trimpot was changed to an external gain control. Increased the value to 100k for more gain. Stock units had BC413C and BC239C transistors which is fairly high gain general purpose silicon transistors so BC549C's and 2N5088's should work equally good.
Schematic.
Stock circuit
Modified circuit
Sunday, 11 August 2019
Saturday, 10 August 2019
Top Gear Fuzz
Jus Oborn of Electric Wizard has been seen using one of these so I had to build it. Raunchy fuzz but suffers from lack of output and the Boost control isn't a favorite of mine. So here is two layouts, one stock and the second with volume mod and a more useful Boost control. I also added a small pF cap across base and collector of Q1 to smooth things out a bit.
Stock circuit
Friday, 9 August 2019
