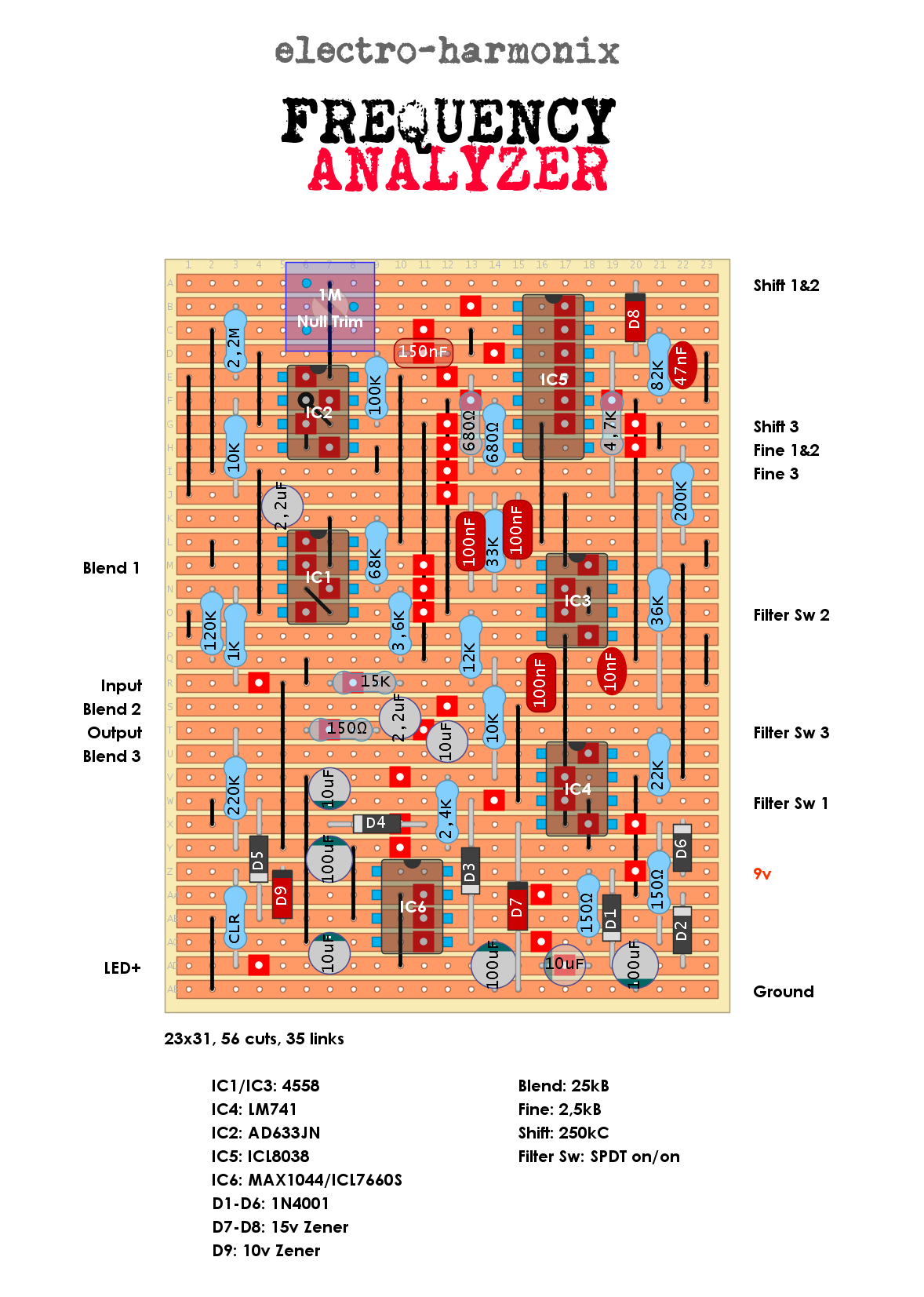

The modern version of EHX Frequency Analyzer. The ICL8083 IC is obsolete but there is still some vendors that have it in stock. Came out taller than expected since I wanted the bipolar voltage doubler circuit on the same board as the main circuit. But it will fit sideways in a BB enclosure...
Schematic is avaiable HERE.
