Victory Amps V1 The Copper

 Schematic is avaiable HERE.

Blackhawk Amplifiers Volume IV

 Traced by evilarsen.

Fuzzlord Effects Troglodyte







A recovery stage is needed because of the lossy tonestack

Here is an another layout with an added BJT boost stage.







Castledine Electronics Magical Mystery Box

 Schematic is avaiable HERE.

There is two layouts for this one. One for an audio transformer and one for a fasel inductor.

Transformer layout





Fasel inductor layout.



Reeves Electro Supa J

 Schematic is avaiable HERE.

EarthQuaker Devices The Warden

 Schematic is avaiable HERE.

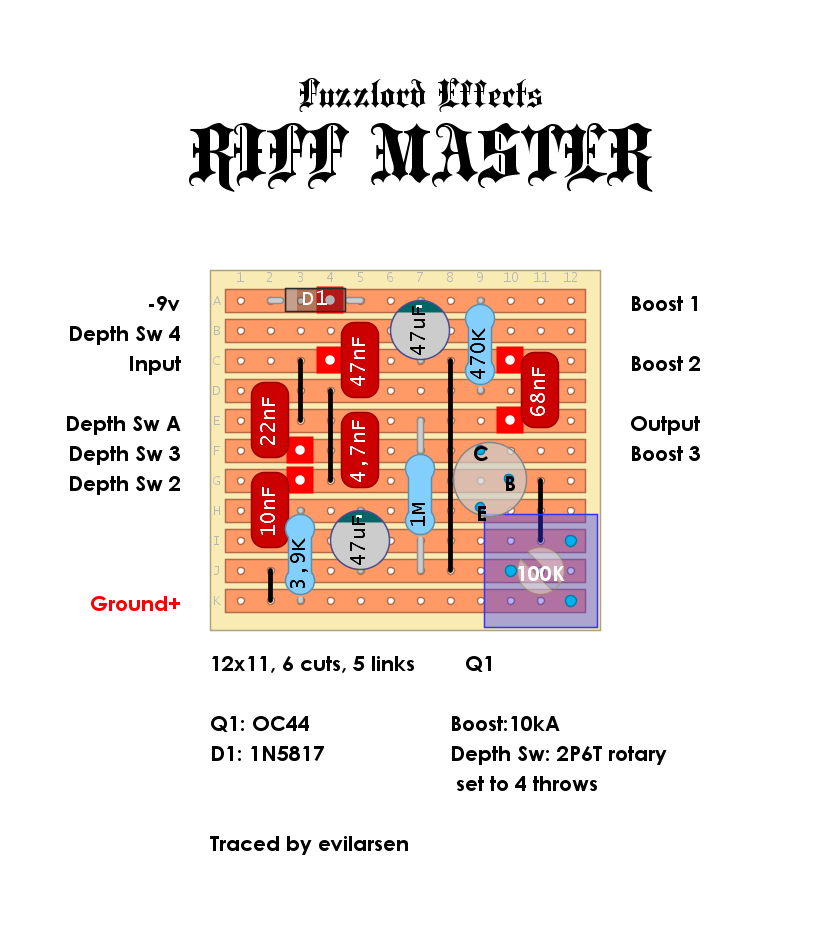

Fuzzlord Effects Riff Master

 Another trace by evilarsen. This is basically a Rangemaster tuned for more low end..

Spektr 2 Fuzz Wah







Exar MT-02 Metal

Schematic is avaiable HERE.



Carl Martin Crush Zone

 A quite interesting one. It is basically an old Tim Escobedo circuit (Punch in the Face silicon/FET fuzz face variant) sandwished between two op amp gainstages. The input cap is only at 220pF, try 4,7nF-10nF to fatten things up a bit. A trimpot is added for easy biasing for the J FET. Stock fixed value is 5,6k.

Schematic is avaiable HERE.

Carl Martin Panama

 Schematic is avaiable HERE.

Devi Ever Silver Rose V1

 Schematic is avaiable HERE.





Sunmachine Sonic Devices Fuzz O)))

 There was quite some hype and interest in this one a few years ago but it was never fully traced. Obviously it was based on a DAM Meathead but and the product description mentions a low pass filter for the "Low" control. guitarfxservice traced it a few days ago (thank you!) and it turns out that it is a stock Meathead with an input cap selector switch and the "Low" control is basically Pre Gain control. Nothing new under the sun(n) I upload this to demistify it.

Missing Link Audio Hotlanta Dual Drive

 Schematic is avaiable HERE.

Colorsound Overdriver MOJO layout



MXR M75 Super Badass Distortion

 Schematic is avaiable HERE.

Exar BM-02 Bad Metal

 Schematic is avaiable HERE.

Exar OD-01 Overdrive

 These things is getting really expensive especially since it got hyped by JHS and was included as the "XR" mode in their Bonsai pedal. It is basically a YATS/Boss-OD-1 with some value changes here and there and assymetrical soft clipping.

Schematic is avaiable HERE.

Victory Amps V1 The Kraken

 Schematic is avaiable HERE.

Blackhawk Amplifiers One Knob Valhalla Fuzz V1



Skreddy Top Fuel

 Schematic is avaiable HERE.

Devi Ever / Dwarfcraft Devices Super Soda Meiser

 Very close to a stock Soda Meiser but with a ground lift control (Drone) for the transistors.

Schematic is avaiable HERE.

Broughton High + Low Pass Filter

 Schematic is avaiable HERE.

Victory Amps V1 The Jack

 Let's start the new year with a BANG.

Per request.

Schematic is avaiable HERE
