Fjord Fuzz Freia

 A BIG thank you to Chris of Capitalist Death Cult for digging this one up!. And also a big thank you to Daniel of Fjord Fuzz for sharing the information how to build a clone.

So, what is it, then? It is basically the preamp section of the mighty Shin Ei/Honey Univibe. Some minor changes has been made so it can be used both as a preamp and a great sounding fuzz when the Bias and Gain is turnned clockwise.

Most medium gain NPN silicon transistors should work fine but they might give different character since it is quite a small circuit. So socketing is recommended.

Cornish TB-83 Treble Booster



VFE Dragon

 Here is a pretty cool overdrive with qquite a poweful eq section. However, it requires som fiddling to make your own custom 10kC/100kC dual gang pots for the EQ controls. HERE is a small tutorial at page 3. Second, the DPDT on/on/on switch type isn't specified in the info sheet I have, only "the coomon type" which leads me to believe it is a "Type 2" switch.

Note that this a buffered bypass circuit.







Guyatone PS-025 Touch Overdrive

 Schematic and trimpot setup is avaiable at Deadend Fx.

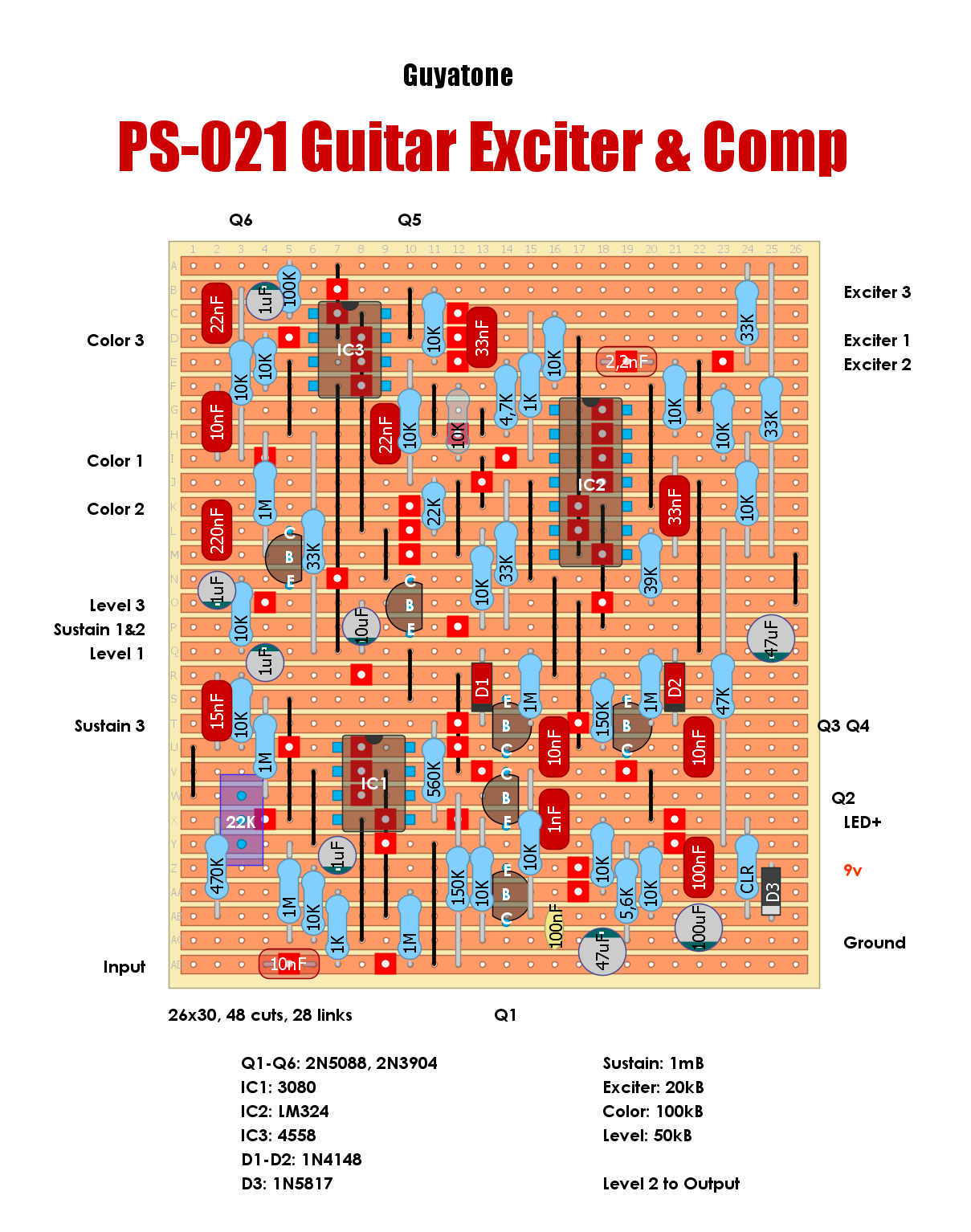

Guyatone PS-021 Guitar Exciter & Compressor

 Schematic is avaiable HERE.

Guyatone PS-020 Bass Exciter & Limiter

 Schematic is avaiable HERE.

Rocktek Metal Worker

 A "bottom of the well" HM2 variant. Differs enough to warrant its own layout, though...







Rocktek ODR-1 Overdrve

 Schematic is avaiable HERE.

ProCo Brat / Roadkill

 Schematic is avaiable HERE.



Aria AOD-1 Overdrive

 Schematic is avaiable HERE.

21th Century Big Muff

 A pretty cool lookin¨take on the ol¨Big Muff. The first and the last stage is replaced by a dual op amp, a diode lift switch at the the first clipping stage, a Gain control that biases both of the clipping stages and for the tonestack, a James control network is used for invidual bass and treble controls. .

Schematic is avaiable HERE.
