Cornish P-1

 Schematic is avaiable HERE.

Madbean Splunker

 Schematic and info is avaiable HERE.

Capitalist Death Cult Just. Give. Up. V2

 Another contribution by Chris. This time he made some improvements and addons on a rare and wild Death by Audio circuit. Tone houndz...stay away!

 Chris says:

I don't know if this warrants its own post but I wanted to show it to you anyway since I was the one who verified your purple card drawing.

Since I built that up I wasn't happy with the bleed through in bypass that sometimes happens with the LM567. So I used the old "millennium bypass" trick of adding a mosfet to handle the LED switching so that you can use only a DPDT for true bypass with an indicator light. THEN I used the now-vacant set of poles on a 3PDT to connect/disconnect the power supply to the LM567 when the circuit is bypassed. So NO NOISE! I also added the master volume, because if ANY circuit needs it, it is this loud beast. Then I put the frequency pot (which I cut down to 10k) on a switched expression jack so that you can get foot-controlled crazy pitch-wah sounds with a standard TRS expression pedal like an inexpensive m-audio or nektar controller. Anything more than 15-20k of resistance for the frequency control just takes you into slower and slower chopped/tremolo territory. And the 10k pot still allows for some of that in the toe up/CCW position and all of the pitch control as you turn the knob up/put the treadle down.



 I added a toggle to change the resistance on the frequency sweep - this allows for a low range and high range mode on the frequency. Since most expression pedals have 10k pots, I wanted to keep the frequency pot at 10k too so that the sweep matches whether you are using the knob or an exp pedal.





Ramble FX Twin Bender

 Schematic is avaiable HERE.

EMMA ReezaFRATzitz FR1

 Schematic is avaiable HERE.

Thorpy Fx Have Blue Ge Boost

 Schematic is avaiable HERE.

OKKO Holy Grit

 Schematic is avaiable HERE.

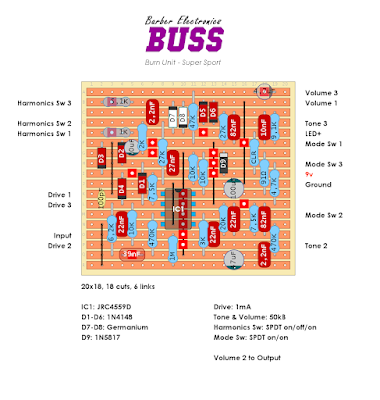

Barber BUSS

 Schematic is avaiable HERE.

Madbean Florist

 Schematic is avaiable HERE.

Catalinbread Epoch Bias

 Schematic is avaiable HERE.

Death by Audio Germanium Filter

 A while ago. Chris Stelloh sent me a Death by Audio germanium Filter to trace. The trace went pretty smootly and I sent the schematic to Chris and he made a vero layout out of it. However, this circuit requires some transistor and diode picking to work as intended. See Chris's notes below...



My notes + warnings from my build attempts: PROCEED WITH CAUTION.

1) The transistors: DBA used MP10b NPN germanium transistors which have a common hfe range of 20-50. The lowest gain transistors I have on hand are MP35's around 40 hfe. And none of these worked properly. At lower settings, the gain was sputtery and sounded misbiased. I was able to get the circuit to work properly with some NPN Fairchild silicon dots from Small Bear that measure at 25 hfe.

2) The unknown silicon diodes on the mosfet gate: 1n4001-4007 worked quite well. I had my best sounding results with 8.2v Zener diodes. the 9v supply will cause any Zeners with lower than that rating to heat up and pop.







And here is layout with trimpots for the collectors solve the gating issue when the Gain control is turned counter clockwise. I also ditched the internal trimpot in favour for an external volume control.









Capitalist Death Cult No One Wants To Work Anymore

 Taking a break from the Madbean bonanza since Chris Stelloh sent a layout and a schematic of one his creations. Some words from the man himself: And yes, this layout is verified.

Here is something I came up with recently that shakes the pillars of heaven, via WAY TOO MANY cuts and jumpers.

It is essentially the modded fuzz face circuit from the Apocalypse Audio H Fuzz with an input buffer (sacrelige, I know), followed by a 5 band gyrator EQ. I used the values from the Dunwich Left Hand Path modded HM-2 and added a 5th lower gyrator that centers at 60Hz, so that bassists can bring the buzzsaw, too. The gain squeals when maxed, but the gate will still clamp down on it nicely. The d311 germanium diode is most likely not necessary. Anything with a .3v volt drop will probably do the job. The 50k trimmer sets the treble content from the fuzz before it hits the EQ stage and sounds best (to me) at about 1 o'clock, but to each their own. This WILL fit in a 1590bb, but just barely!











Madbean Dangerzone

 Schematic can be downloaded HERE.

Madbean Grease Gun

 Schematic can be downloaded HERE.

Madbean Peacekeeper

 Schematic can be downloaded HERE.

Madbean Dinky Drive

Schematic can be downloaded HERE.

Based on the pre amp section of a Bad Cat Mini II which is supposed to bring some "Voxy" tones.

Madbean Degenerator

 Schematic is aviaable HERE.

Madbean Tilt

 Schematic can be downloaded HERE.



Madbean Stank

 Madbean pedals was a great resource and very educational when I started out with DIY circuits. The archives with old projects is quite impressive. So the next coming days you'll see some Madbean content (some well-known, some obscure). Let's start with something simple...STANK!

The schematic can be downloaded at Madbean Archives page.
