Hi Anders, a few to changes to make and its verified. Sounds just like the demos, noisy!!
There are 28 links, not 27

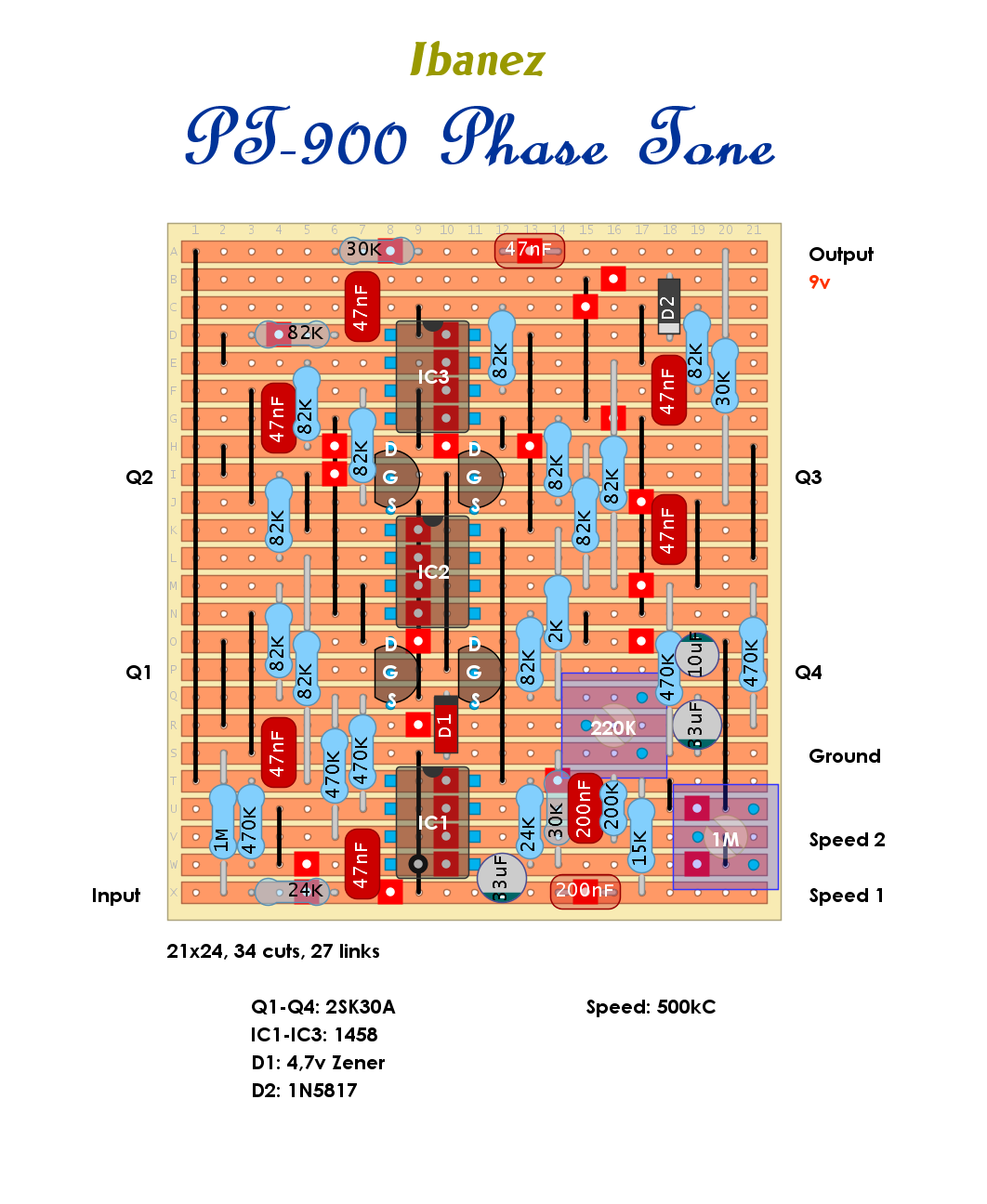

470K resistor at M21 to R21 needs to be P21 to R21 33uf capacitor at W12 to X12 needs to be V12 to X12 200nf capacitor at T15 to V15 needs to be T15 to W15 200K resistor at T16 to V16 needs to be T16 to W16
There may be an easier way to do the above
Last thing, Speed 1 should be Speed 3 (otherwise it works CCW)
Hi Anders, a few to changes to make and its verified. Sounds just like the demos, noisy!!
ReplyDeleteThere are 28 links, not 27
470K resistor at M21 to R21 needs to be P21 to R21
33uf capacitor at W12 to X12 needs to be V12 to X12
200nf capacitor at T15 to V15 needs to be T15 to W15
200K resistor at T16 to V16 needs to be T16 to W16
There may be an easier way to do the above
Last thing, Speed 1 should be Speed 3 (otherwise it works CCW)
